Burned up my Pisound?

kleag · October 21, 2025, 8:42pm

Hi,
I fear that I have maybe broken something on my Pisound. I’m building a guitar multieffect with a raspberry pi 5 (with pipewire and wayland). I just finished soldering all the components and made several tests of them connected to the extension headers of the pisound. Unfortunately, when I plugged again my guitar and my amp, I did not hear any sound at all. I first checked the two cables and they work.

Then I checked the devices and everything seems OK (devices appear on qpwgraph and aplay etc. give the correct output).

I also checked the volume and mute/unmute widgets on the RaspberrypiOS desktop and they are OK.

I also removed everything other than the pisound and plugged it in directly on the pi. No change.

I tried it also on a raspberry pi 4 I have and got the same results.

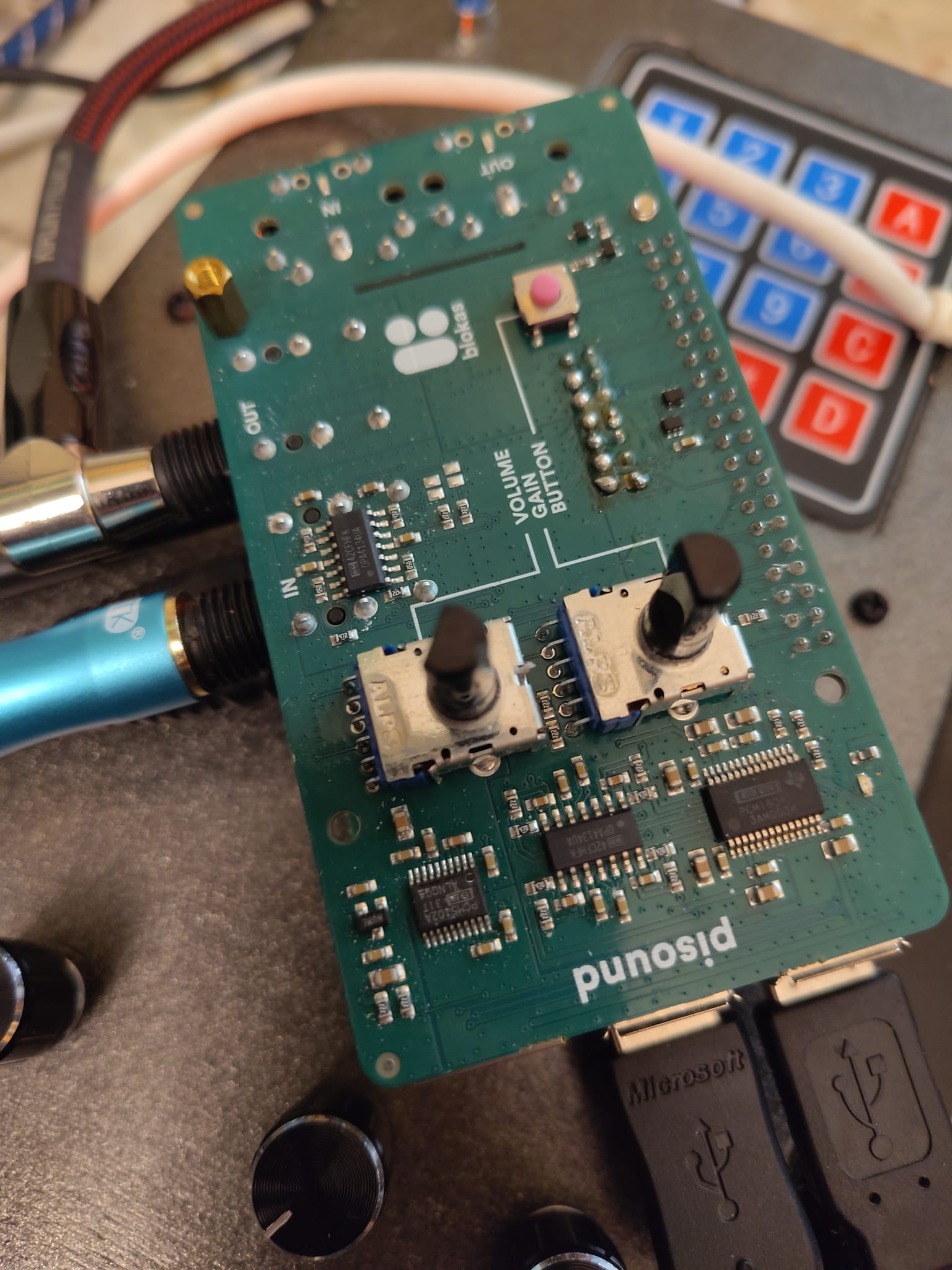

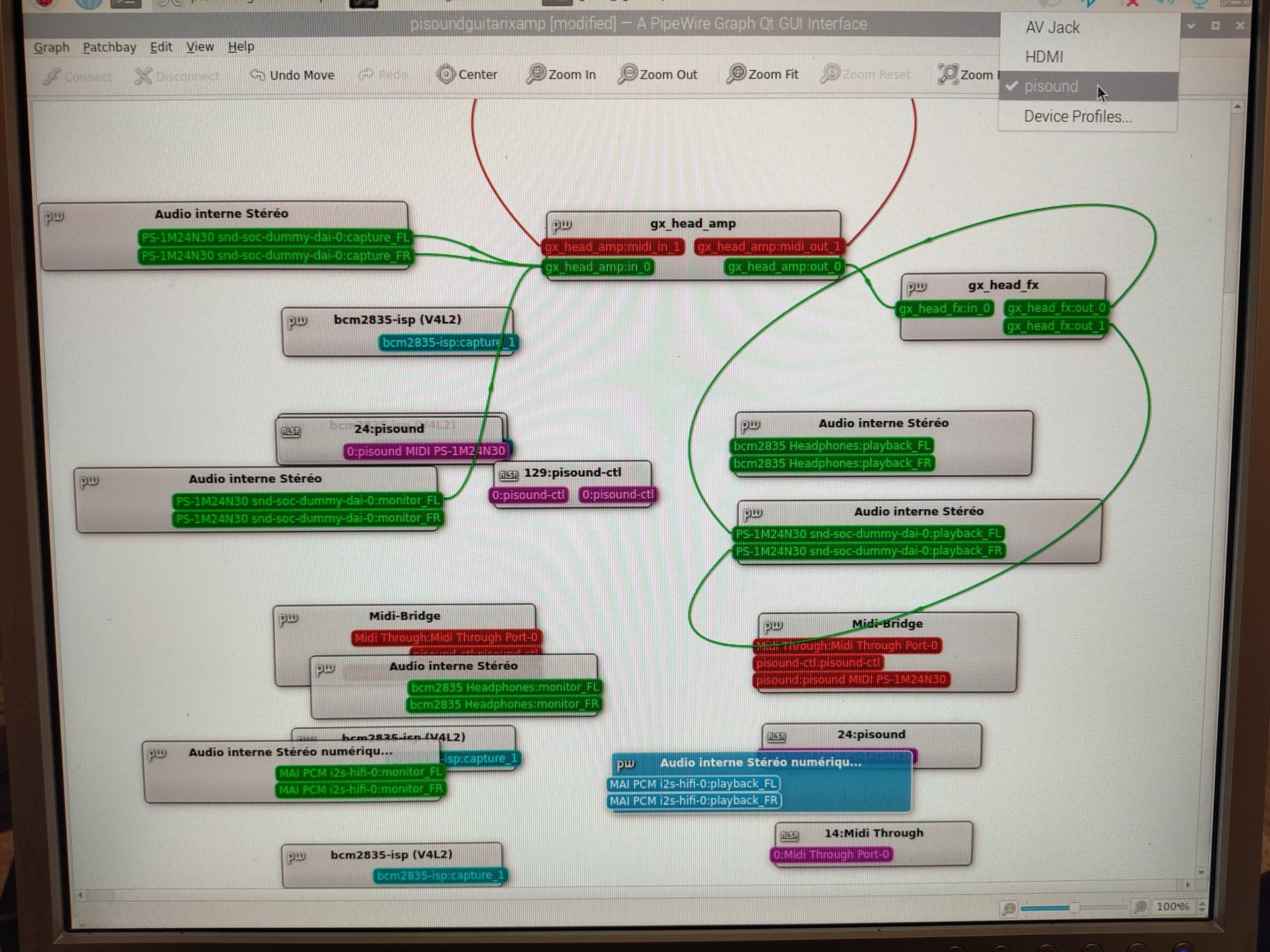

I share a photo of the rp4 with the pisound on it and a view of qpwgraph with the devices.

Do you think I could have broken something that prevent only input and/or output from the jacks? What could I do to verify? I have only a multimeter to test the electronics. Do you think of other things at the software level that could prevent the signal to be sent to the amp?

Best,

Gaël

Giedrius · October 22, 2025, 6:48am

Try running this command to test audio output first:

speaker-test -c2 -r48000 -Dhw:pisound

It should be producing white noise on the left channel, then on the right one.

Could you also post a picture of the bottom side of Pisound? If there are wires obstructing the view, try to make a couple of pictures so I can visually inspect the surrounding components.

kleag · October 22, 2025, 8:36am

Hi Giedrus,

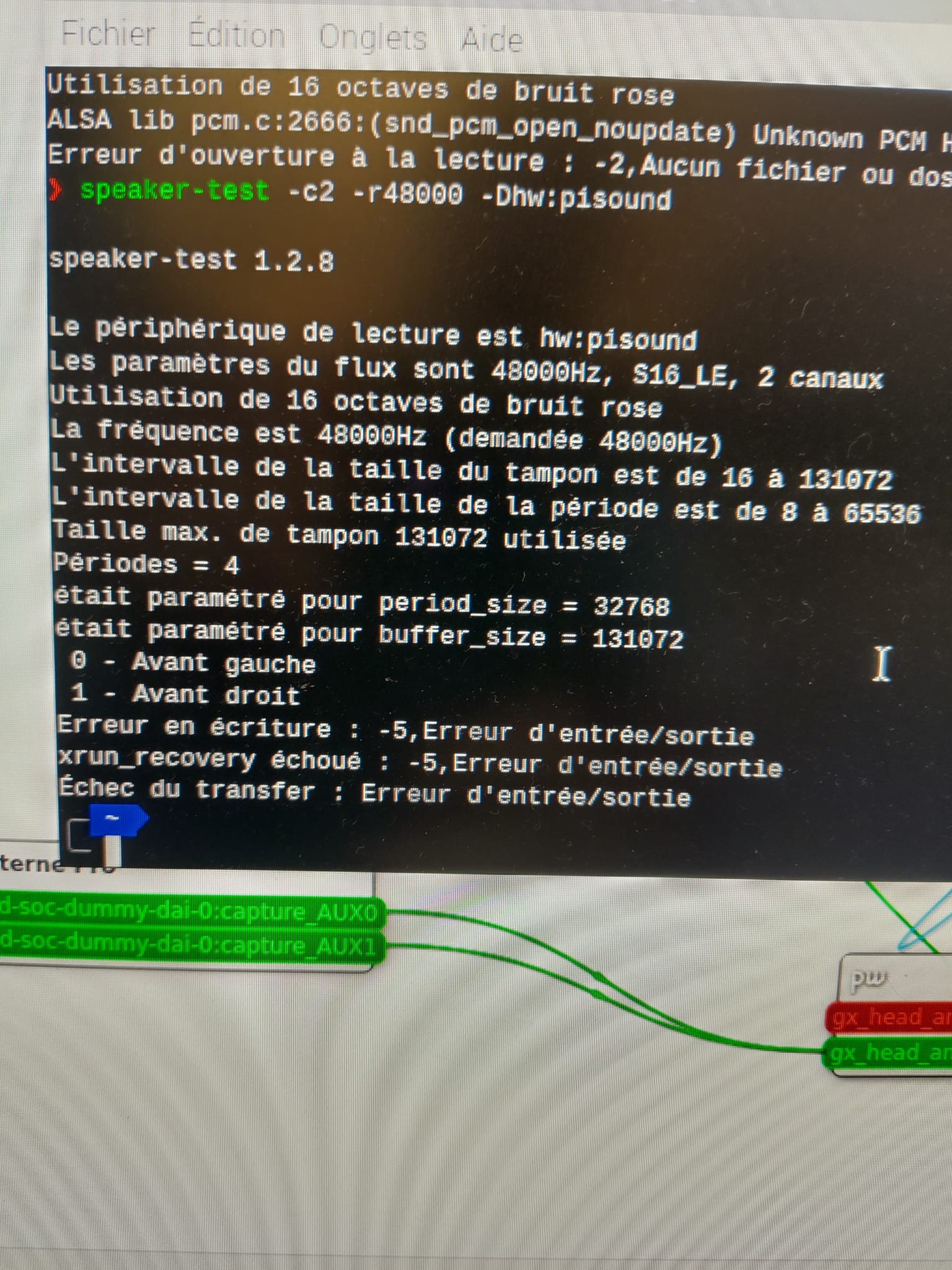

Thanks for you answer. I got no sound with the speaker-test, but an input/output error. See the snapshot.

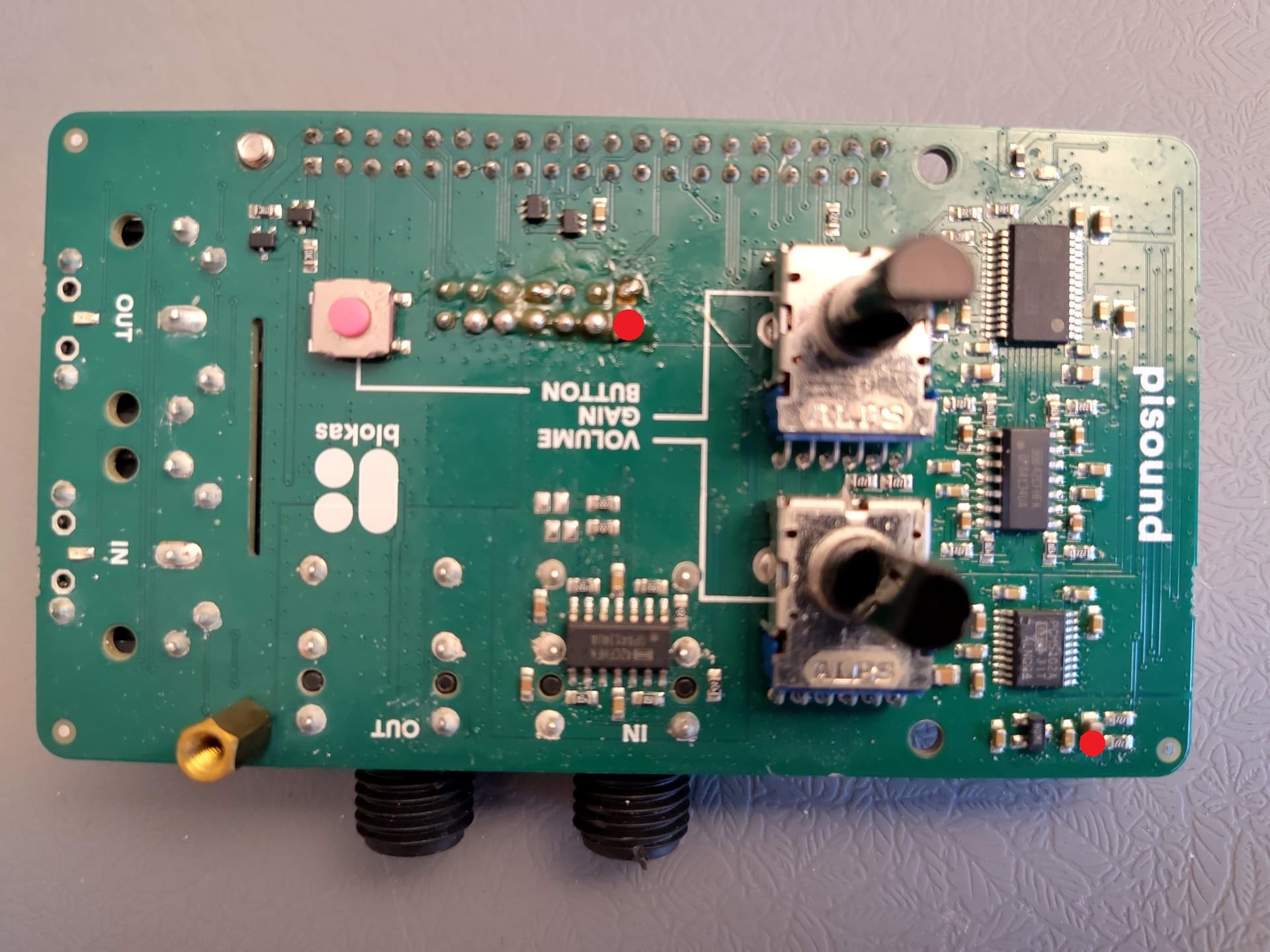

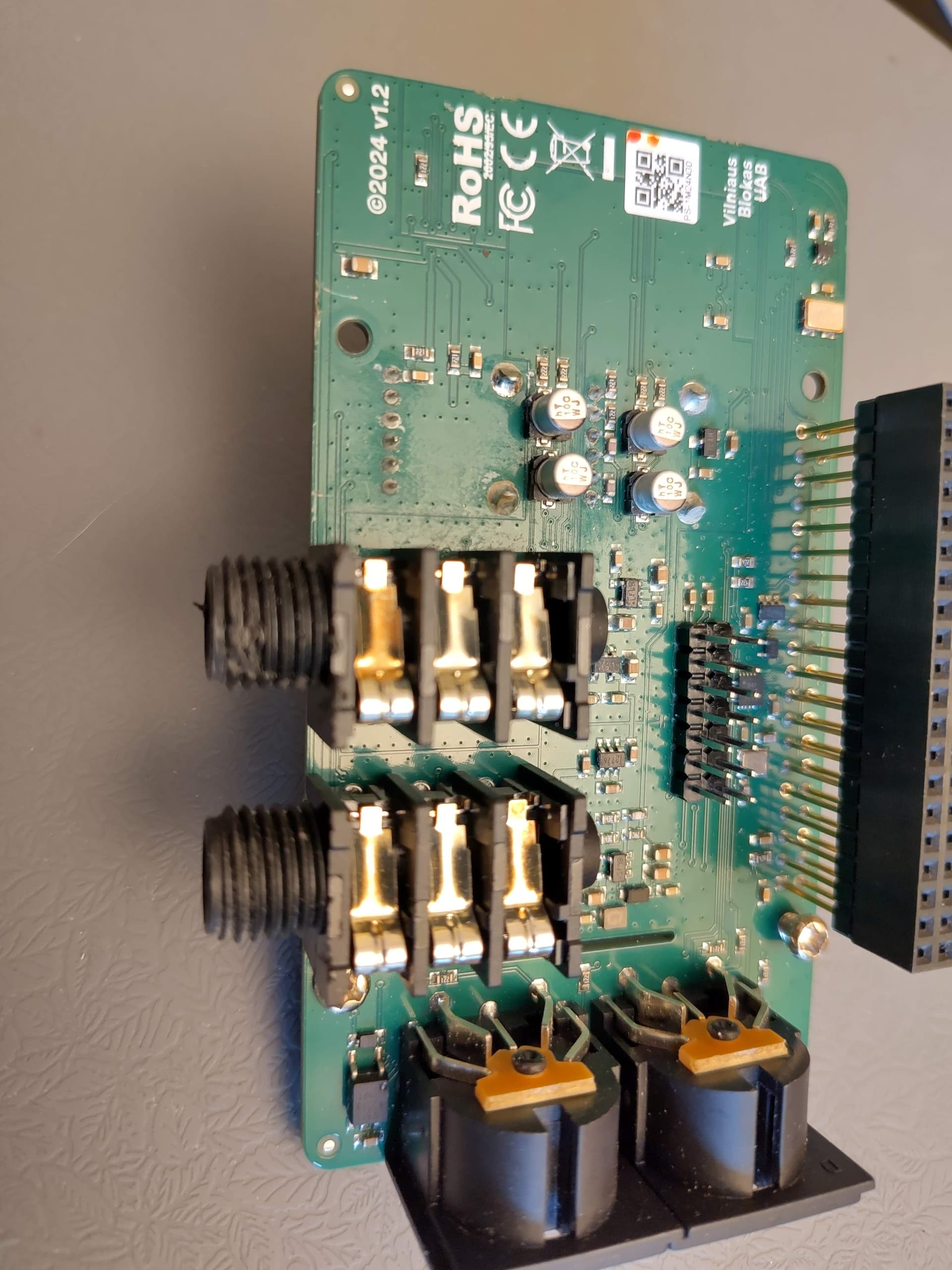

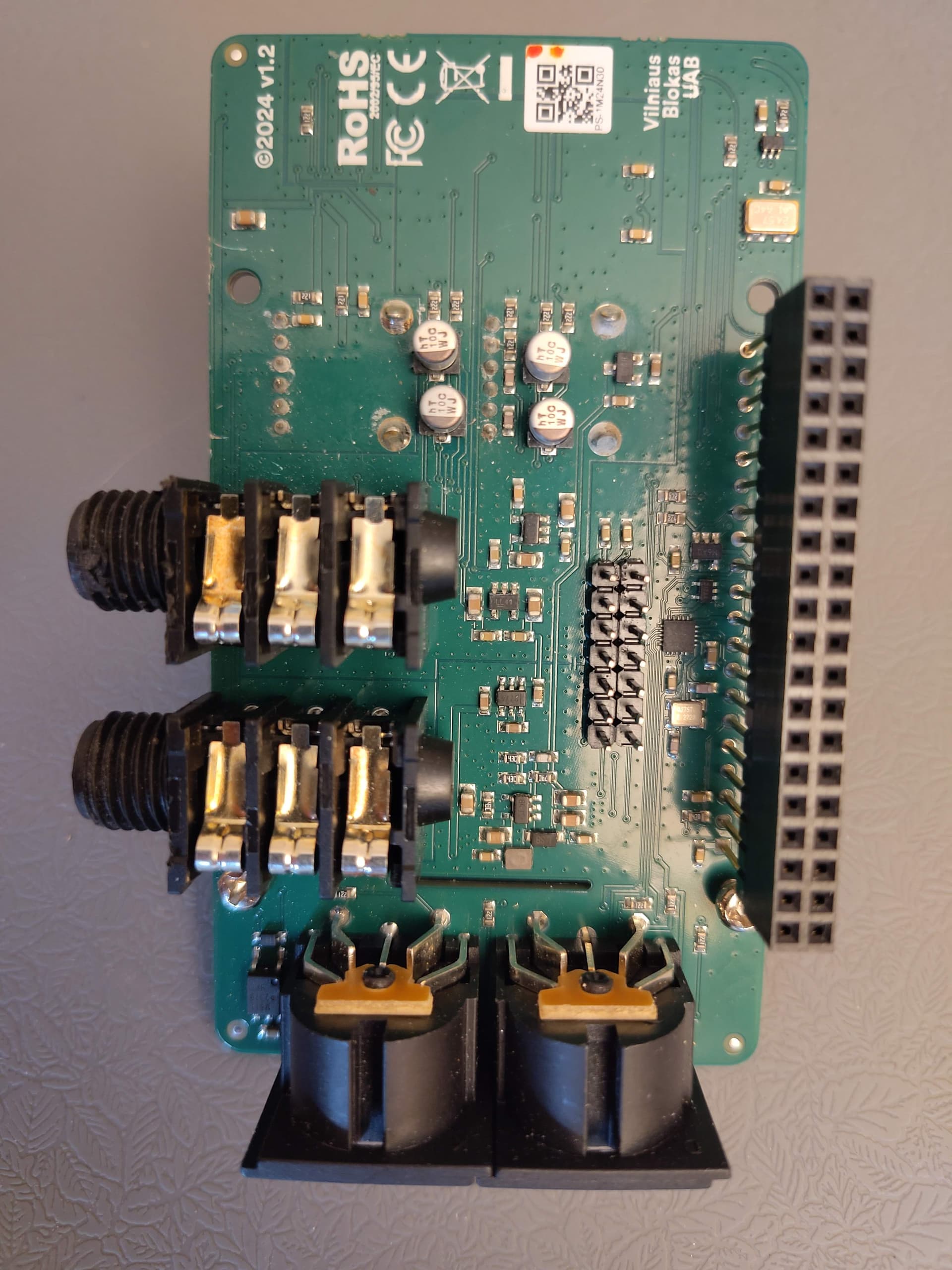

I join also photos of the bottom side. I hope they are good enough.
I am absolutly shameful of my soldering skills…

Giedrius · October 22, 2025, 9:35am

Could you also attach the dmesg log after having run the speaker-test?

Do dmesg > dmesg.log and it will write it to a dmesg.log in your current directory (usually your home directory).

Don’t worry about it, practice helps Make sure you heat up both, the pad/ring and the pin - the solder flows to the heated parts. Apply solder at around the place where the soldering iron and the other surfaces meet, even better, if it’s possible to not apply it to the soldering iron directly, but on the opposite side of the pin/pad. If solder won’t stick - some flux may be needed, but the solder core usually has it in its internal structure, so most of the time it’s enough to apply the solder wire at the correct location. Additionally, some contacts that connect to a polygon, most usually the Ground plane, require much more heating up time, before the solder flows nicely. The rectangular pin on the header is a Ground pin, so heat it up for a bit more time.

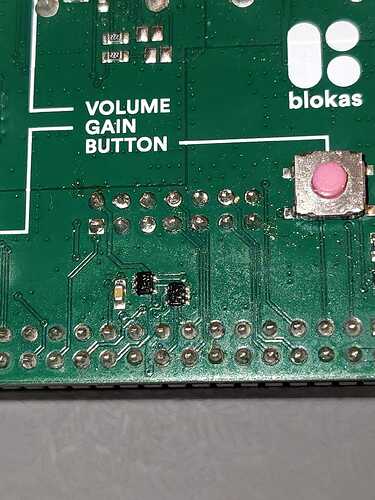

You do have some excess solder on your pins, it would be good to reflow them and remove the excess with a solder wick. The shape of solder to aim for is a cone.

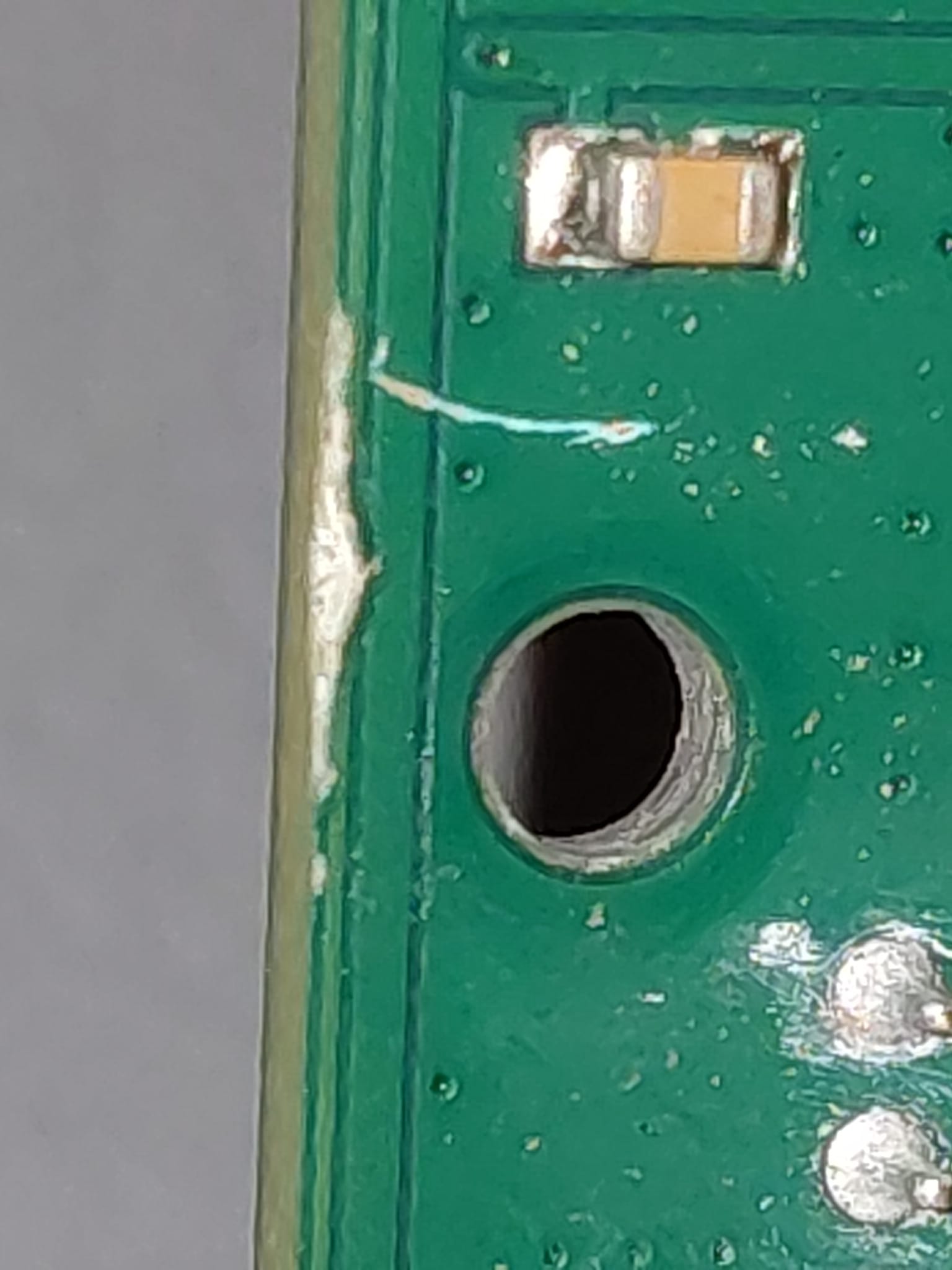

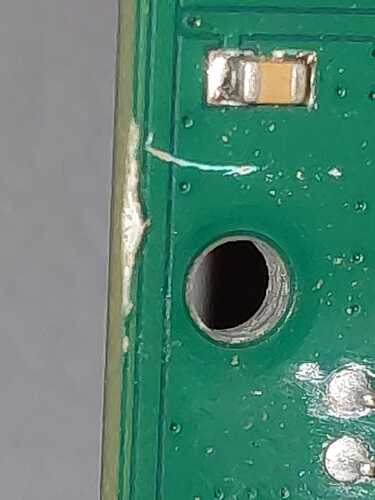

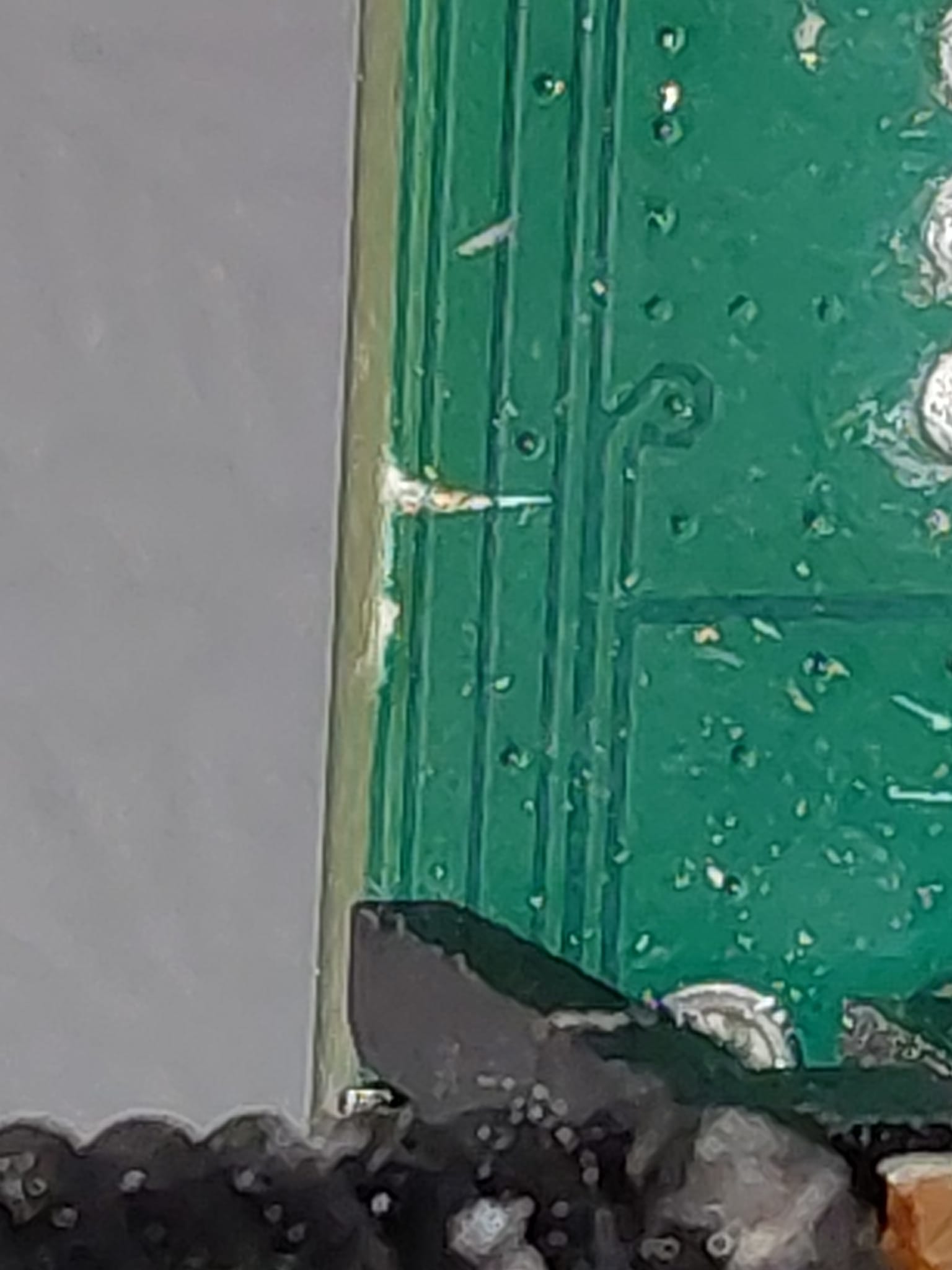

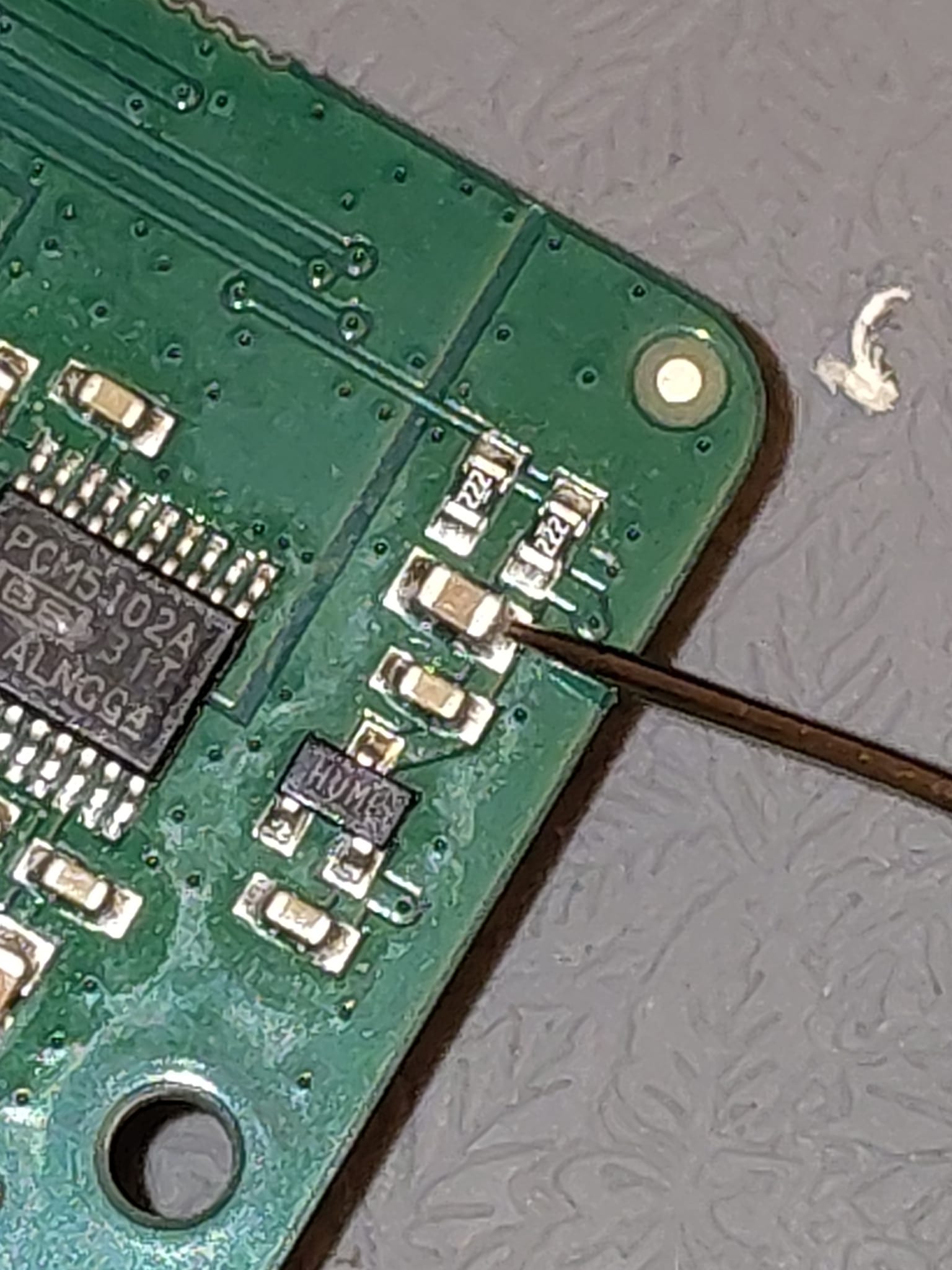

I notice some scratches on the bottom side on the trace along the edge of the board, it may have broken or impacted contact. Please check whether these pins are connected, and measure the resistance:

kleag · October 22, 2025, 12:31pm

Thanks for your encouragements on the soldering side. I will try to correct as you suggested.

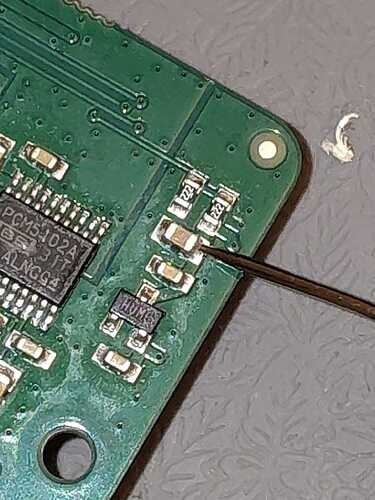

I put below the dmesg output. For the resistance between the indicated locations, there is continuity and a resistance of approximatively 14.8Mohm.
